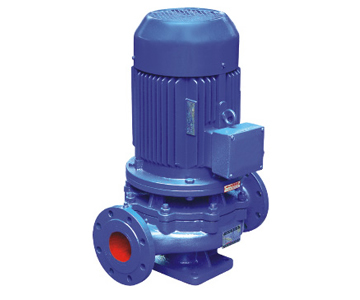

產品概述
ISGD型低轉速離心泵系在ISG型基礎上并參照IS型離心泵之性能參數，根據管道式離心泵的獨特結構組合設計制造。該產品采用國內水泵專家提供的水力模型，節能，性能可靠，深受國內外客商的贊益。
產品特點
ISGD型低轉速離心泵是在ISG型立式離心泵基礎上配用低轉速電機，大幅度降低了運行噪音，成倍延長易損件命名用壽命，適用于空調循環及采暖循環和各種循環系統末端增壓。設計的立式結構使其占地面積和占用空間更少，使用更方便。
主要用途
ISGD型低轉速離心泵：主要用于空調系統冷凍水，冷卻水循環及末端增壓，城市供熱系統局部或末端增壓循環，及城市建筑消防系統局部恒壓及各種空調熱水鍋爐配套。
工作條件
ISGD型電機0.75kw以上泵系統工作壓力為1.6MPa即泵吸入口壓力+泵揚程≤1.6MPa，泵靜壓試驗壓力為2.5MPa，0.75kw以下泵系統工作壓力為0.8MPa。
|
型號 |
流量Q |
揚程（M） |
效率（%）
|
轉速(r/min) |
電機功率 （KW） |
必需汽蝕 |
重量 |
|
|
（m3/h) |
（L/S） |
|||||||
|
40-100 |
3.2 |
0.89 |
3 |
48 |
1400 |
0.12 |
2.5 |
17 |
|
40-125 |
3.2 |
0.89 |
5 |
40 |
1400 |
0.18 |
2.5 |
19 |
|
40-125A |
2.8 |
0.78 |
4 |
39 |
1400 |
0.12 |
2.5 |
19 |
|
40-160 |
3.2 |
0.89 |
8 |
36 |
1400 |
0.25 |
2.5 |
24 |
|
40-160A |
2.8 |
0.78 |
6.4 |
35 |
1400 |
0.18 |
2.5 |
22 |
|
40-200 |
3.2 |
0.89 |
12.5 |
31 |
1450 |
0.55 |
2.5 |
38 |
|
40-200A |
2.8 |
0.78 |
10 |
30 |
1400 |
0.37 |
2.5 |
30 |
|
40-250 |
3.2 |
0.89 |
20 |
25 |
1450 |
1.1 |
2.5 |
52 |
|
40-250A |
2.8 |
0.78 |
16 |
25 |
1450 |
0.75 |
2.5 |
47 |
|
40-250B |
2.3 |
0.64 |
13 |
24 |
1450 |
0.55 |
2.5 |
46 |
|
40-100(I) |
6.3 |
1.75 |
3 |
54 |
1400 |
0.12 |
2.5 |
17 |
|
40-125(I) |
6.3 |
1.75 |
5.0 |
54 |
1400 |
0.25 |
2.5 |
29 |
|
40-125(I)A |
5.6 |
1.56 |
4.0 |
52 |
1400 |
0.18 |
2.5 |
24 |
|
40-160(I) |
6.3 |
1.75 |
8.0 |
47 |
1450 |
0.55 |
2.5 |
43 |
|
40-160(I)A |
5.1 |
1.42 |
5.3 |
45 |
1400 |
0.25 |
2.5 |
30 |
|
40-200(I) |
6.3 |
1.75 |
12.5 |
40 |
1450 |
0.75 |
2.5 |
45 |
|
40-200(I)A |
5.5 |
1.53 |
9.5 |
39 |
1450 |
0.55 |
2.5 |
44 |
|
40-250(I) |
6.3 |
1.75 |
20 |
32 |
1450 |
1.5 |
2.5 |
54 |
|
40-250(I)A |
5.6 |
1.56 |
16 |
32 |
1450 |
1.1 |
2.5 |
49 |
|
40-250(I)B |
5.1 |
1.42 |
13 |
30 |
1450 |
0.75 |
2.5 |
42 |
|
50-100 |
6.3 |
1.75 |
3 |
54 |
1400 |
0.12 |
2.5 |
19 |
|
50-125 |
6.3 |
1.75 |
5.0 |
54 |
1400 |
0.25 |
2.5 |
25 |
|
50-125A |
5.6 |
1.56 |
4.0 |
52 |
1400 |
0.18 |
2.5 |
19 |
|
50-160 |
6.3 |
1.75 |
8.0 |
47 |
1450 |
0.55 |
2.5 |
42 |
|
50-160A |
5.1 |
1.42 |
5.3 |
45 |
1400 |
0.25 |
2.5 |
37 |
|
50-200 |
6.3 |
1.75 |
12.5 |
40 |
1450 |
0.75 |
2.5 |
48 |
|
50-200A |
5.5 |
1.53 |
9.5 |
39 |
1450 |
0.55 |
2.5 |
46 |
|
50-250 |
6.3 |
1.75 |
20 |
32 |
1450 |
1.5 |
2.5 |
58 |
|
50-250A |
5.6 |
1.56 |
16 |
32 |
1450 |
1.1 |
2.5 |
50 |
|
50-250B |
5.1 |
1.42 |
13 |
30 |
1450 |
0.75 |
2.5 |
49 |
|
50-100(I) |
12.5 |
3.47 |
3 |
63 |
1400 |
0.25 |
2.5 |
23 |
|
50-125(I) |
12.5 |
3.47 |
5.0 |
63 |
1400 |
0.37 |
2.5 |
34 |
|
50-125(I)A |
11.0 |
3.06 |
3.8 |
60 |
1400 |
0.25 |
2.5 |
33 |
|
50-160(I) |
12.5 |
3.47 |
8 |
59 |
1450 |
0.55 |
2.8 |
46 |
|
110型號 |
流量Q |
揚程（M） |
效率（%）
|
轉速(r/min) |
電機功率 （KW） |
必需汽蝕 |
重量 |
|
|
（m3/h) |
（L/S） |
|||||||
|
50-160(I)A |
10.8 |
3.0 |
6 |
57 |
1400 |
0.37 |
2.8 |
34 |
|
50-200(I) |
12.5 |
3.47 |
12.5 |
54 |
1450 |
1.1 |
2.8 |
52 |
|
50-200(I)A |
11.3 |
3.14 |
10.1 |
53 |
1450 |
0.75 |
2.8 |
48 |
|
50-250(I) |
12.5 |
3.47 |
20 |
45 |
1450 |
2.2 |
2.8 |
73 |
|
50-250(I)A |
11.7 |
3.25 |
17.6 |
44 |
1450 |
1.5 |
2.8 |
65 |
|
50-250(I)B |
10.2 |
2.83 |
13.4 |
43 |
1450 |
1.1 |
2.8 |
60 |
|
50-315(I) |
12.5 |
3.47 |
32 |
36 |
1450 |
4.0 |
2.8 |
89 |
|
50-315(I)A |
11.7 |
3.25 |
28 |
36 |
1450 |
3.0 |
2.8 |
84 |
|
50-315(I)B |
10.2 |
2.81 |
21 |
34 |
1450 |
3.0 |
2.8 |
82 |
|
65-100 |
12.5 |
3.47 |
3 |
63 |
1400 |
0.25 |
2.8 |
29 |
|
65-125 |
12.5 |
3.47 |
5.0 |
63 |
1400 |
0.37 |
2.8 |
32 |
|
65-125A |
11.0 |
3.06 |
3.8 |
60 |
1400 |
0.25 |
2.8 |
27 |
|
65-160 |
12.5 |
3.47 |
8 |
59 |
1450 |
0.55 |
2.8 |
46 |
|
65-160A |
10.8 |
3.0 |
6 |
57 |
1400 |
0.37 |
2.8 |
35 |
|
65-200 |
12.5 |
3.47 |
12.5 |
54 |
1450 |
1.1 |
2.8 |
52 |
|
65-200A |
11.3 |
3.14 |
10.1 |
53 |
1450 |
0.75 |
2.8 |
48 |
|
65-250 |
12.5 |
3.47 |
20 |
45 |
1450 |
2.2 |
2.8 |
76 |
|
65-250A |
11.7 |
3.25 |
17.6 |
44 |
1450 |
1.5 |
2.8 |
68 |
|
65-250B |
10.2 |
2.83 |
13.4 |
43 |
1450 |
1.1 |
2.8 |
63 |
|
65-315 |
12.5 |
3.47 |
32 |
36 |
1450 |
4.0 |
2.8 |
89 |
|
65-315A |
11.7 |
3.25 |
28 |
36 |
1450 |
3.0 |
2.8 |
85 |
|
65-315B |
10.1 |
2.81 |
21 |
34 |
1450 |
3.0 |
2.8 |
82 |
|
65-100(I) |
25 |
6.94 |
3 |
70 |
1400 |
0.37 |
2.8 |
33 |
|
65-125(I) |
25 |
6.94 |
5 |
70 |
1450 |
0.75 |
2.8 |
49 |
|
65-125(I)A |
21.8 |
6.05 |
3.8 |
65 |
1450 |
0.55 |
2.8 |
48 |
|
65-160(I) |
25 |
6.94 |
8 |
68 |
1450 |
1.1 |
2.8 |
54 |
|
65-160(I)A |
21.6 |
6.0 |
6.0 |
65 |
1450 |
0.75 |
2.8 |
48 |
|
65-200(I) |
25 |
6.94 |
12.5 |
64 |
1450 |
2.2 |
2.8 |
71 |
|
65-200(I)A |
23.3 |
6.47 |
10.9 |
63 |
1450 |
1.5 |
2.8 |
62 |
|
65-250(I) |
25 |
6.94 |
20 |
59 |
1450 |
3.0 |
2.8 |
85 |
|
65-250(I)A |
22.2 |
6.17 |
15.8 |
58 |
1450 |
2.2 |
2.8 |
80 |
|
65-250(I)B |
19.8 |
5.5 |
12.6 |
57 |
1450 |
1.5 |
2.8 |
74 |
|
65-315(I) |
25 |
6.94 |
32 |
50 |
1450 |
5.5 |
2.8 |
120 |
|
65-315(I)A |
23 |
6.39 |
27.9 |
50 |
1450 |
4.0 |
2.8 |
110 |
|
110型號 |
流量Q |
揚程（M） |
效率（%）
|
轉速(r/min) |
電機功率 （KW） |
必需汽蝕 |
重量 |
|
|
（m3/h) |
（L/S） |
|||||||
|
65-315(I)B |
20.2 |
5.61 |
21 |
49 |
1450 |
3.0 |
2.8 |
100 |
|
80-100 |
25 |
6.94 |
3 |
70 |
1450 |
0.37 |
2.8 |
33 |
|
80-125 |
21.8 |
6.94 |
5 |
70 |
1450 |
0.75 |
2.8 |
48 |
|
80-125A |
25 |
6.05 |
3.8 |
65 |
1450 |
0.55 |
2.8 |
45 |
|
80-160 |
21.6 |
6.94 |
8 |
68 |
1450 |
1.1 |
2.8 |
55 |
|
80-160A |
25 |
6.0 |
6.0 |
65 |
1450 |
0.75 |
2.8 |
51 |
|
80-200 |
23.3 |
6.94 |
12.5 |
64 |
1450 |
2.2 |
2.8 |
72 |
|
80-200A |
25 |
6.47 |
10.9 |
63 |
1450 |
1.5 |
2.8 |
64 |
|
80-250 |
, 22.2 |
6.94 |
20 |
59 |
1450 |
3.0 |
2.8 |
89 |
|
80-250A |
19.8 |
6.17 |
15.8 |
58 |
1450 |
2.2 |
2.8 |
85 |
|
80-250B |
25 |
5.5 |
12.6 |
57 |
1450 |
1.5 |
2.8 |
78 |
|
80-315 |
23 |
6.94 |
32 |
50 |
1450 |
5.5 |
2.8 |
130 |
|
80-315A |
20.2 |
6.39 |
27.9 |
50 |
1450 |
4.0 |
2.8 |
102 |
|
80-315B |
50 |
5.61 |
21 |
49 |
1400 |
3.0 |
2.8 |
95 |
|
80-100(I) |
50 |
13.89 |
3 |
73 |
1450 |
0.75 |
3.0 |
58 |
|
80-125(I) |
44.6 |
13.89 |
5 |
73 |
1450 |
1.1 |
3.0 |
61 |
|
80-125(I)A |
50 |
12.4 |
4 |
63 |
1450 |
1.1 |
3.0 |
61 |
|
80-160(I) |
44.5 |
13.89 |
8 |
73 |
1450 |
2.2 |
3.0 |
82 |
|
80-160(I)A |
50 |
12.36 |
6.3 |
71 |
1450 |
1.5 |
3.0 |
74 |
|
80-200(I) |
44.6 |
13.89 |
12.5 |
72 |
1450 |
3.0 |
3.0 |
97 |
|
80-200(I)A |
50 |
12.36 |
9.9 |
71 |
1450 |
2.2 |
3.0 |
93 |
|
80-250(I) |
44.5 |
13.89 |
20 |
66 |
1450 |
5.5 |
3.0 |
134 |
|
80-250(I)A |
50 |
12.97 |
17.4 |
65 |
1450 |
4.0 |
3.0 |
106 |
|
80-250(I)B |
44.6 |
11.22 |
13.1 |
63 |
1450 |
3.0 |
3.0 |
100 |
|
80-315(I) |
50 |
13.89 |
32 |
61 |
1450 |
11.0 |
3.0 |
180 |
|
80-315(I)A |
46.7 |
12.97 |
27.9 |
61 |
1450 |
7.5 |
3.0 |
166 |
|
80-315(I)B |
40.5 |
11.22 |
21 |
60 |
1450 |
5.5 |
3.0 |
62 |
|
100-100 |
50 |
13.89 |
3 |
73 |
1450 |
0.75 |
3.0 |
70 |
|
100-125 |
50 |
13.89 |
5 |
73 |
1450 |
1.1 |
3.0 |
68 |
|
100-125A |
44.6 |
12.4 |
4 |
63 |
1450 |
1.1 |
3.0 |
68 |
|
100-160 |
50 |
13.89 |
8 |
73 |
1450 |
2.2 |
3.0 |
87 |
|
100-160A |
44.5 |
12.36 |
6.3 |
71 |
1450 |
1.5 |
3.0 |
79 |
|
100-200 |
50 |
13.89 |
12.5 |
72 |
1450 |
3.0 |
3.0 |
100 |
|
100-200A |
44.6 |
12.36 |
9.9 |
71 |
1450 |
2.2 |
3.0 |
90 |
|
110型號 |
流量Q |
揚程（M） |
效率（%）
|
轉速(r/min) |
電機功率 （KW） |
必需汽蝕 |
重量 |
|
|
（m3/h) |
（L/S） |
|||||||
|
100-250 |
50 |
13.89 |
20 |
66 |
1450 |
5.5 |
3.0 |
140 |
|
100-250A |
46.7 |
12.97 |
17.4 |
65 |
1450 |
4.0 |
3.0 |
112 |
|
13.1 |
63 |
1450 |
3.0 |
3.0 |
105 |
|||
|
100-315 |
50 |
13.89 |
32 |
61 |
1450 |
11.0 |
3.0 |
225 |
|
100-315A |
46.7 |
12.97 |
27.9 |
61 |
1450 |
7.5 |
3.0 |
180 |
|
100-315B |
40.5 |
11.22 |
21 |
60 |
1450 |
5.5 |
3.0 |
165 |
|
100-125(I) |
100 |
27.78 |
5 |
78 |
1450 |
2.2 |
3.0 |
95 |
|
100-125(I)A |
87.1 |
24.2 |
3.8 |
76 |
1450 |
1.5 |
3.0 |
87 |
|
100-160(I) |
100 |
27.78 |
8 |
78 |
1450 |
4.0 |
3.0 |
118 |
|
100-160(I)A |
87.1 |
24.2 |
6.3 |
76 |
1450 |
3.0 |
3.0 |
113 |
|
100-200(I) |
100 |
27.78 |
12.5 |
75 |
1450 |
5.5 |
3.0 |
148 |
|
100-200(I)A |
86.1 |
23.92 |
9.3 |
73 |
1450 |
4.0 |
3.0 |
123 |
|
100-250(I) |
100 |
22.78 |
20 |
74 |
1450 |
11.0 |
3.0 |
208 |
|
100-250(I)A |
93.3 |
25.92 |
17.4 |
73 |
1400 |
7.5 |
165 |
|
|
100-250(I)B |
87 |
24.17 |
15 |
72 |
1450 |
5.5 |
3.0 |
149 |
|
100-315(I) |
100 |
22.78 |
32 |
71 |
1450 |
15.0 |
3.0 |
234 |
|
100-315(I)A |
91.0 |
25.28 |
27 |
71 |
1450 |
11.0 |
3.0 |
213 |
|
100-315(I)B |
79.0 |
21.94 |
20 |
70 |
1450 |
7.5 |
3.0 |
165 |
|
100-400(I) |
100 |
22.78 |
50 |
65 |
1450 |
30.0 |
3.0 |
375 |
|
100-400(I)A |
94 |
26.11 |
44 |
65 |
1450 |
22.0 |
3.0 |
295 |
|
100-400(I)B |
87 |
24.17 |
38 |
64 |
1450 |
18.5 |
3.0 |
257 |
|
100-400(I)C |
81 |
22.56 |
32.8 |
62 |
1450 |
15.0 |
3.0 |
239 |
|
125-125 |
80 |
22.2 |
5 |
76 |
1450 |
2.2 |
3.0 |
148 |
|
125-125A |
71.5 |
19.9 |
4 |
75 |
1450 |
1.5 |
3.0 |
125 |
|
125-160 |
80 |
22.2 |
8 |
74 |
1450 |
3.0 |
3.0 |
205 |
|
125-160A |
69.3 |
19.3 |
6 |
73 |
1450 |
2.2 |
3.0 |
165 |
|
125-200 |
80 |
23.2 |
12.5 |
73 |
1450 |
5.5 |
3.0 |
249 |
|
125-200A |
75 |
20.8 |
11 |
72 |
1450 |
4.0 |
3.0 |
237 |
|
125-250 |
80 |
22.2 |
20 |
72 |
1450 |
7.5 |
2.8 |
220 |
|
125-250A |
75 |
20.8 |
17.5 |
71 |
1450 |
7.5 |
2.8 |
210 |
|
125-250B |
69 |
11.2 |
15 |
70 |
1450 |
5.5 |
2.8 |
195 |
|
125-315 |
80 |
22.2 |
32 |
67 |
1450 |
15.0 |
2.5 |
300 |
|
125-315A |
75 |
20.8 |
27.5 |
66 |
1450 |
11.0 |
2.5 |
282 |
|
125-315B |
72 |
20 |
25 |
65 |
1450 |
11.0 |
2.5 |
245 |
在線客服
